製品説明
1.機能とアプリケーション

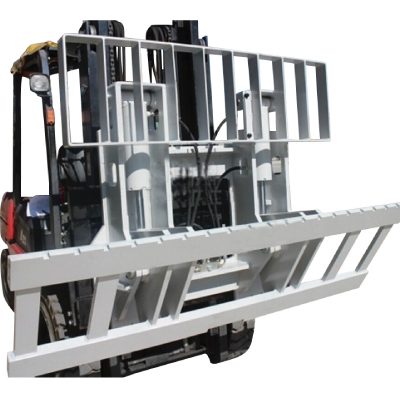

HUAMAI brand hinged fork is safe and efficient to dump bulk cargo container
Configurated with bucket to shovel all loosen goodds sunch as sand, coal, grain, fertilizer, soad and the
blocks, ect.
2.機能
-Proven durable construction design, unoverall framework adopts full steel structure, high strength,
can meet the needs of high strength work.
-Body hinger, using polymer composite bushing, hardness is twice as general copper sleeve!
Fully extended bushing life! Because of its self lubricating function without regular filling
grease can avoids rapid wear of the ilning sleeve for the pin shaft fracture failure.
-Good field of vision, safe and reliable
容量@ ロードセンター | カタログ 注文番号。 | フォーク | キャリッジ 幅 | Truck 取り付け クラス | Hinged フォーク | 全体 高さ | Tilt Forward Backward | 重量 | 効果的 厚さ | 横 の中心 重力 |
(kg @ mm) | (mm) | (mm) | (kg) | ET (mm) | CGH (mm) | |||||
[email protected] | HFB20D-001A | no | 1040 | II | II | 955 | 45°/25° | 320 | 310 | 132 |
[email protected] | HFB25D-002A | no | 1040 | II | II | 955 | 45°/25° | 320 | 390 | 132 |
[email protected] | HFB30D-003A | no | 1100 | III | III | 968 | 45°/25° | 335 | 325 | 132 |
[email protected] | HFB35D-002B | no | 1100 | III | III | 1175 | 45°/25° | 400 | 383 | 132 |
[email protected] | HFB40D-003B | no | 1100 | III | III | 1388 | 45°/25° | 480 | 395 | 195 |
[email protected] | HFB45D-004B | no | 1450 | III | III | 1388 | 45°/25° | 800 | 425 | 195 |
[email protected] | FMS30D-008B | III | 790-2600 | 400 | 1800 | 730 | 255 | 680 | 200 | 300 |
Remark: One set additional oil circuit required on forklift
3.オプション
Different mounting class
Different bar width
フォーク
バケツ
負荷背もたれを高くする
私たちの利点
なぜ私たちを信頼できるサプライヤーとして選ぶか、地元のディーラーとして働くのですか?
1.経験豊富な技術チーム、より専門的なサービス
HUAMAI is made up of a team of members who have years of experience with European forklift trucks and its attachments.
2.幅広い製品範囲、カスタムデザイン、トータルソリューションの提供
HUAMAIは、広範囲の油圧および機械アタッチメントの製造に特化した大企業に急速に成長しました。油圧アタッチメントの主なカテゴリには、回転型、スライドアーム型、サイドシフト/ヒンジ型、特殊用途型などがあります。
3.代理店/ディーラーの場合、優先サポート
If you a local dealer, can achieve HUAMAI agent policy support, including fast delivery time, competitive price and accessories support, ect.
4.自社工場、競争力のある価格
私たちの工場は10,000平方メートルの面積をカバーし、近代的な製造設備と設備を完備しています。生産規模を拡大し、仲買人を使用しないことで、購入コストを節約できます。
5.販売実績とお客様からの声、これは当社の優れたパフォーマンスを証明します
クイック詳細
原産地:福建省、中国(本土)
銘柄:HUAMAI
Products name: Hinged fork
Capacity: 2000-4500kg
Carriage width range: 790-2600mm
Truck mounting class: II/III
Hinged fork mounting class: II/III
Overall height: 730-1388mm
Self weight: 320-800kg
色:白または要件として
表面処理:塗装
保証:12mmまたは2000労働時間
