仕様書
Used in food processing and manufacturing for inverting and dumping loads. Rotators add 360 revolving motion, in both direction
アプリケーション:

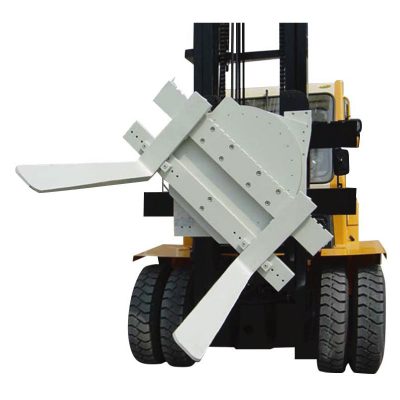

Used in food processing and manufacturing for inverting and dumping loads. Rotators add 360° Revolving motion, in both directions, to truck forks.
特徴:
頑丈なオールスチール構造で、高効率で連続運転の要件を満たします。
360° Revolving motion, in both directions.
Reasonable design with dependable world top quality hydraulic component.
注意:
One additional hydraulic circuits required on truck.
Forks excluded. Optional forks according to requirements.
リストされている製品はすべて標準モデルであり、詳細な要件に応じてカスタム製品を提供できます。
モデル | 容量/ ロードセンター | オープニング 範囲 D | 効果的 厚さ C | 横 センター 重力の CGH | 重量 | 腕 長さ L | フォーク Spacing | フォーク | フレーム 幅 B | 取り付け クラス |
(kg / mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | (mm) | |||
G14R25-216B44 | 2500/500 | 735-2165 | 352 | 425 | 900 | 1200 | 650 | 4 | 1140 | 3 |
G14R25-216B46 | 1000 | 880 | 6 | |||||||
G14R25-216B64 | 440 | 1000 | 1400 | 650 | 4 | |||||
G14R25-216B66 | 1100 | 880 | 6 | |||||||
G14R30-216B44 | 3000/500 | 735-2165 | 355 | 420 | 930 | 1200 | 650 | 4 | 1140 | 3 |
G 14R30-216B46 | 1130 | 880 | 6 | |||||||
G14R30-216B64 | 455 | 1030 | 1400 | 650 | 4 | |||||
G14R30-216B66 | 1130 | 880 | 6 |
基本情報
Model NO.: G1425
素材:金属
構造:Gクランプ
Trademark: HYTGER
仕様:CE、SGS、ISO
HSコード:84312090
Name: Forklift Attachment/Fork Clamps for Forklift(G14r2
使用法:頑丈なクランプ
標準:標準
輸送パッケージ:耐航性のある梱包
起源:福建省中国
